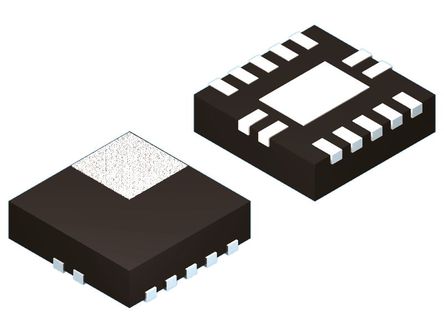

74HC14BQ - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC183354138
Category:
Logic Control, Logic Gate IC
Package:
DHVQFN
Datasheet:
Datasheet 3D Model
Description:
NXP 74HC14BQ Inverter, Schmitt Trigger, 74HC14, 1Input, 5.2mA, 2V to 6V, DHVQFN-14
Stock Locations:
Availability:
1,768 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.28

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC14BQ is a Hex Inverter with Schmitt-trigger inputs. This device features reduced input threshold levels to allow interfacing to TTL logic levels. Inputs also include clamp diodes, this enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt-trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Complies with JEDEC standard no. 7A
Low-power dissipation
ESD protection - HBM JESD22-A114F exceeds 2000V, MM JESD22-A115-A exceeds 200V

Show

74HC14BQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	DHVQFN
Supply Voltage (DC)	2.00V (min)
Output Current	5.2 mA
Number of Positions	14 Position
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	3.1 mm
Size-Width	2.6 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
