- 1.5 AMP POSITIVE STEP-DOWN INTEGRATED SWITCHING REGULATOR
- The 78SR100 is a series of wide input voltage, 3-terminal Integrated Switching Regulators (ISRs). These ISRs have a maximum output current of 1.5A and an output voltage that is laser trimmed to a variety of industry standard voltages.
- • Very Small Footprint
- • High Efficiency > 85%
- • Self-Contained Inductor
- • Internal Short-Circuit Protection
- • Over-Temperature Protection
- • Wide Input Range

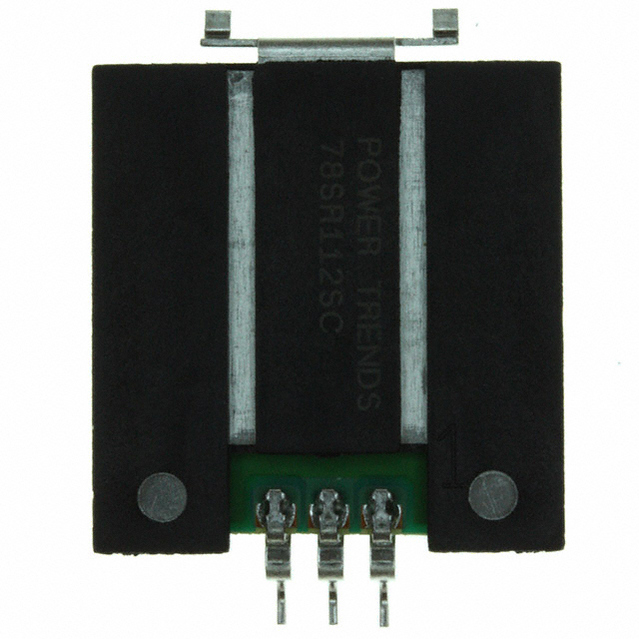

78SR105SC Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SMD-3 |
| Frequency | 650 kHz |
| Number of Outputs | 1 Output |
| Output Voltage | 5.00 V |
| Output Current | 1.50 A |
| Topology | Buck |
| Input Voltage (Max) | 30 V |
| Input Voltage (Min) | 7 V |
| Output Current (Max) | 1.5 A |
| Input Power (Max) | 7.5 W |
| Show | |
| Size-Length | 23.9 mm |
| Size-Width | 22.9 mm |
| Size-Height | 8.63 mm |
| Weight | 6.50 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
