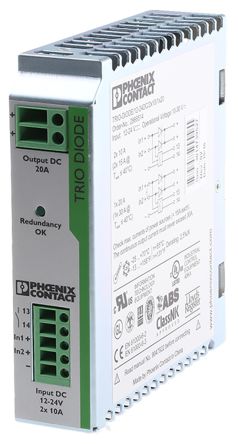

Image is for your reference only,please check specifications for details
- 2866514 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC10536129
-
Package:Module
-
Datasheet:Datasheet 3D Model
-
Description:PHOENIX CONTACT 2866514 Power Supply Accessory, Redundancy Module, TRIO DIODE, DIN Rail, 12V to 24VDC, 2 x 10A, 1 x 20A
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 20/07/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **TRIO DIODE Redundancy Module**
- Using the redundancy module, it is possible for two power supply units of the same type connected in parallel on the,output side to increase performance or for redundancy to be 100% isolated from one another.
2866514 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | Module |
| Output Voltage | 24 VDC |
| Output Current | 20 A |
| Input Voltage (Max) | 30 VDC |
| Input Voltage (Min) | 10 VDC |
| Output Voltage (Max) | 24 VDC |
| Output Voltage (Min) | 12 VDC |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Input Voltage | 24 VDC |
| Show | |
| Size-Length | 115 mm |
| Size-Width | 32 mm |
| Size-Height | 130 mm |
| Weight | 370 g |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8504407018 |
| ECCN Code | EAR99 |
