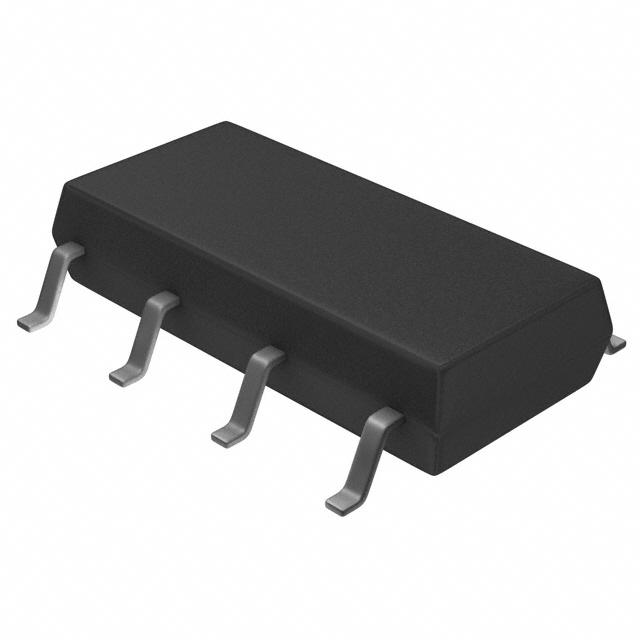

Image is for your reference only,please check specifications for details
- AQW210SX - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC6445933
-
Category:Solid State Relay
-
Package:SOP-8
-
Datasheet:Datasheet 3D Model
-
Description:AQW Photomos Series 350V 0.1A 16Ω SMT 2Channel Solid State Relay - SOIC-8
-
Stock Locations:
-
Availability:16 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.3
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PhotoMOS® GU SOP 2 From A
- Miniature SOP8-pin type of 60V/350V/400V load voltage
- FEATURES
- 1\. 2 channels in miniature SOP8-pin design
- The device comes in a super-miniature SO package measuring (W) 4.4 ×(L) 9.37 ×(H) 2.1 mm (W) .173×(L) .369 × (H) .083 inch—approx. 38% of the volume and 66% of the footprint size of
- DIP8-pin type.
- 2\. Controls low-level analog signals PhotoMOS feature extremely low closed circuit offset voltage to enable control of low-level analog signals without distortion.
- 3\. Low-level off state leakage current of max. 1 µA
- TYPICAL APPLICATIONS
- • Measuring instruments
- • Data communications
- • Computers
- • Industrial robots
- • High-speed inspection machines.
AQW210SX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOP-8 |
| Output Voltage | 0V ~ 350V |
| Output Current | 100 mA |
| Contacts Type | DPST-NO |
| Load Current | 100 mA |
| Input Current | 50 mA |
| Power Dissipation | 650 mW |
| Rise Time | 230 µs |
| Isolation Voltage | 1.5 kV |
| Forward Current | 900 µA |
| Input Voltage (Max) | 1.5 V |
| Output Voltage (Max) | 350 V |
| Output Current (Max) | 0.1 A |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 650 mW |
| Input Voltage | 1.14 VDC |
| Show | |
| Size-Length | 9.37 mm |
| Size-Width | 4.40 mm |
| Size-Height | 2.10 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
