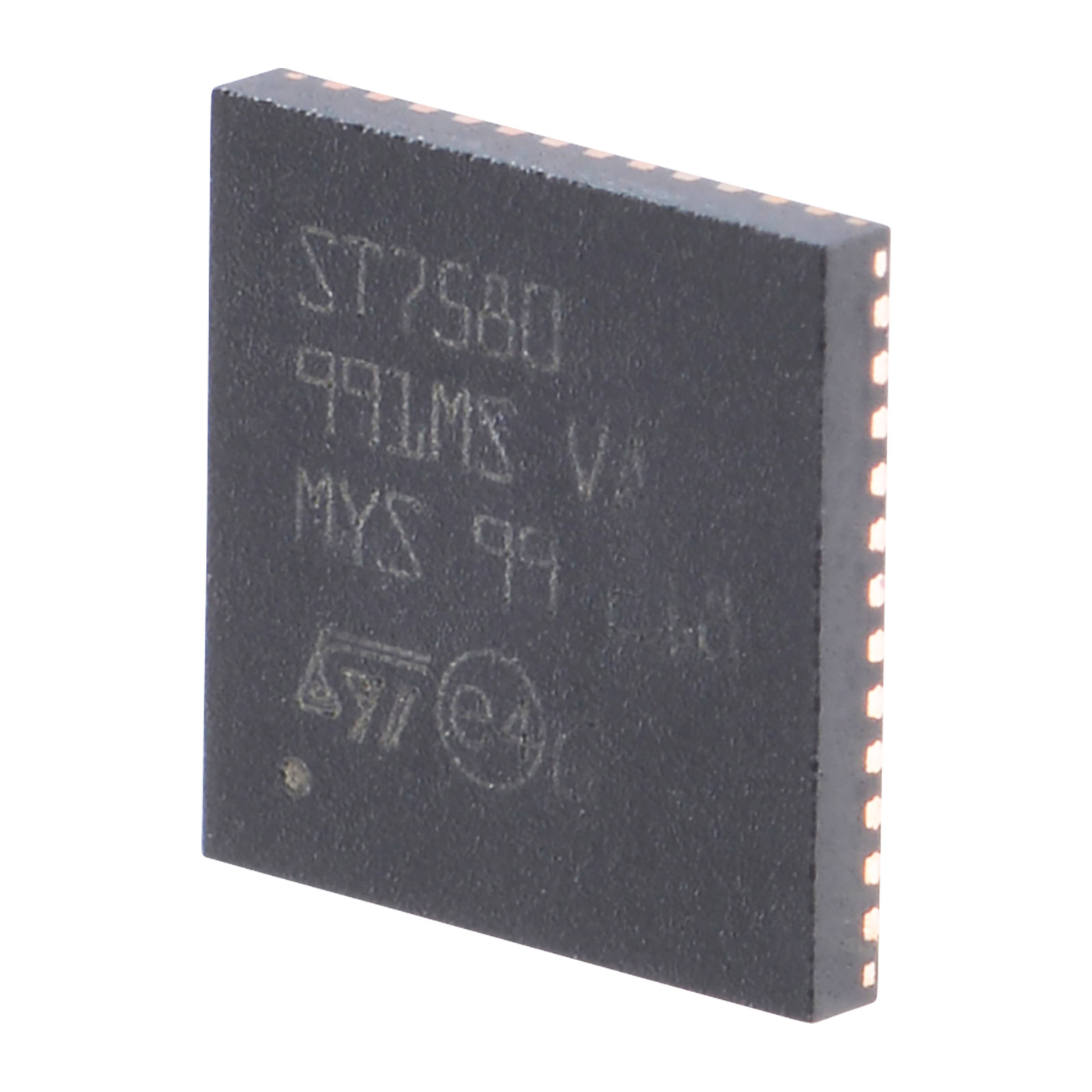

Image is for your reference only,please check specifications for details
- ST7580 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC45251736
-
Category:Interface IC, Interface Controller
-
Package:VFQFPN-48
-
Datasheet:Datasheet 3D Model
-
Description:ST7580 Series 18V 57.6kbps FSK/PSK Power Line Networking System-on-Chip-VFQFPN48
-
Stock Locations:
-
Availability:232 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 12.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The ST7580 is a flexible power line networking system-on-chip combining a high performing PHY processor core and a protocol controller with a fully integrated analog front end (AFE) and line driver for a scalable future-proof, cost effective,
- single chip, narrow-band power line communication solution.
- Features
- ■ Fully integrated narrow-band power line networking system-on-chip
- ■ High-performing PHY processor with embedded turnkey firmware featuring:
- – B-FSK modulation up to 9.6 kbps
- – B-PSK, Q-PSK, 8-PSK modulations up to 28.8 kbps
- – Dual channel operation mode
- – Convolutional error correction coding
- – Signal-to-noise ratio estimation
- – B-PSK with PNA mode against impulsive noise
- ■ Protocol engine embedding turnkey communication protocol
- – Framing service
- – Error detection
- – Sniffer functionality
- ■ Host controller UART interface up to 57.6 kbps
- ■ AES-128 based authentication and confidentiality services
- ■ Fully integrated analog front end:
- – ADC and DAC
- – Digital transmission level control
- – PGA with automatic gain control
- – High sensitivity receiver
- ■ Fully integrated single-ended power amplifier for line driving
- – Up to 1 A RMS, 14 V p-p output
- – Configurable active filtering topology
- – Very high linearity
- – Embedded temperature sensor
- – Current control feature
- ■ 8 to 18 V power amplifier supply
- ■ 3.3 V or 5 V digital I/O supply
- ■ Zero crossing detection
- ■ Suitable for EN50065, FCC part 15 and ARIB compliant applications
- ■ Communication carrier frequency programmable up to 250 kHz
- ■ VFQFPN48 7x7x1.0 48L exposed pad package
- ■ -40 °C to +85 °C temperature range
- Applications
- ■ Smart metering applications
- ■ Street lighting control
- ■ Command and control networking
ST7580 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | VFQFPN-48 |
| Frequency | 8 MHz |
| Supply Current | 500 µA |
| Number of Circuits | 1 Circuit |
| Number of Positions | 48 Position |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8V ~ 18V |
| Supply Voltage (Max) | 1.98 V |
| Supply Voltage (Min) | 1.62 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 5A992.c |
| HK STC License | NLR |
