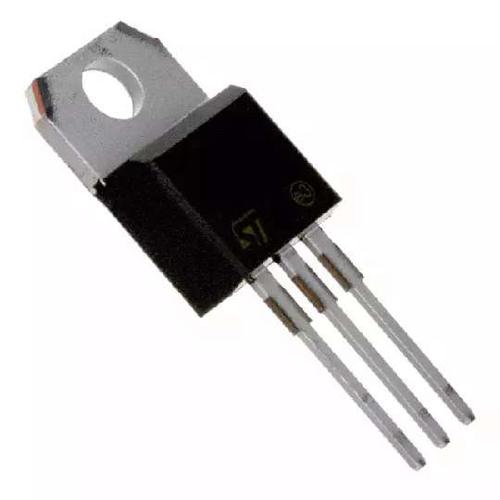

Image is for your reference only,please check specifications for details

STPS30M100ST - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC68692227
Category:
Schottky Diode
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STPS30M100ST Small Signal Schottky Diode, Single, 100V, 30A, 800mV, 300A, 150℃
Stock Locations:
Availability:
9,285 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.66

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STPS30M100ST is a Power Schottky Rectifier featuring good trade off between leakage current and forward voltage drop. This single Schottky rectifier suited for high frequency switch mode power supply. It is intended to be used in notebook and game station adaptors, providing in these applications a good efficiency at both low and high load.
Avalanche rated
Low VF
High frequency operation
Avalanche capability specified

Show

STPS30M100ST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Positions	3 Position
Forward Voltage	800mV @30A
Forward Current	30 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	800 mV
Forward Current (Max)	30 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.3 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
