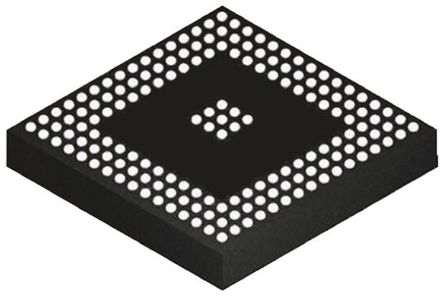

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD9920ABBCZ is a highly integrated Charge-Coupled Device (CCD) Signal Processor. It includes a complete analog front end (AFE) with analog-to-digital conversion, combined with a full-function programmable timing generator and 19-channel vertical driver (V-driver). The timing generator is capable of supporting up to 24 vertical clock signals to control advanced CCDs. The on-chip V-driver supports up to 19 channels for use with six-field CCDs. A Precision Timing® core allows adjustment of high speed clocks with approximately 400 s resolution at 40.5MHz operation. The AD9920A also contains six GPOs that can be used for shutter and system functions. The analog front end includes black level clamping, variable gain CDS and a 12-bit ADC. The timing generator provides all the necessary CCD clocks: RG, H-clocks, V-clocks, sensor gate pulses, substrate clock and substrate bias control.
Integrated 19-channel V-driver
1.8V AFETG core
24 Programmable vertical clock signals
Correlated double sampler (CDS) with -3dB, 0dB, +3dB and +6dB gain
12-bit, 40.5MHz analog-to-digital converter (ADC)
Black level clamp with variable level control
Complete on-chip timing generator
Precision Timing core with 400ps resolution
On-chip 3V horizontal and RG drivers
General-purpose outputs (GPOs) for shutter and system support
On-chip sync generator with external sync input
On-chip 1.8V low dropout (LDO) regulator

Show

AD9920ABBCZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	105 Pin
Case/Package	CSPBGA-105
Supply Voltage (DC)	1.60V (min)
Supply Current	27 mA
Number of Channels	1 Channel
Number of Positions	105 Position
Number of Bits	12 Bit
Power Dissipation	110 mW
Resolution (Bits)	12.0 Bit
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Supply Voltage (Max)	2 V
Supply Voltage (Min)	1.6 V
Input Voltage	3 V
	Show
Size-Length	8.1 mm
Size-Width	8.1 mm
Size-Height	0.91 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
