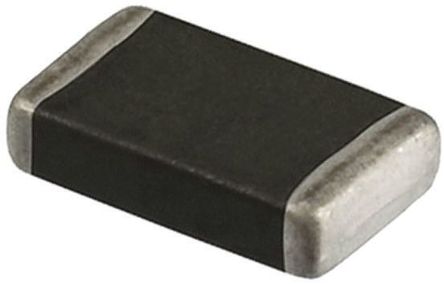

Image is for your reference only,please check specifications for details
- 82306120029 - Wurth Electronics
-
Manufacturer:Wurth Electronics
-
ManyChip's Part#:MC31835632
-
Category:TVS Diode
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:TVS Diodes - Transient Voltage Suppressors WE-VE 0603 USB 2.0 12V 10MoHM
-
Stock Locations:
-
Availability:1,535 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.73
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 82306120029 is an ESD ultra low capacitance Transient Voltage Suppressor (TVS) Diode with ZnO body and Ag/Ni/Sn end termination. The TVS diode features fast response time, almost no energy consumption in stand-by mode and excellent absorption for ESD-impulses.
- No leakage current
- Low clamping voltage
- 150V Trigger voltage
- 0.01µA Leakage current
- 0.2pF Capacitance
- ESD sensitive device, take proper precaution while handling the device.
82306120029 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Voltage Rating (DC) | 12.0 V |
| Operating Voltage | 12 V |
| Capacitance | 200 fF |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Clamping Voltage | 30 V |
| Test Current | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.9 mm |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
