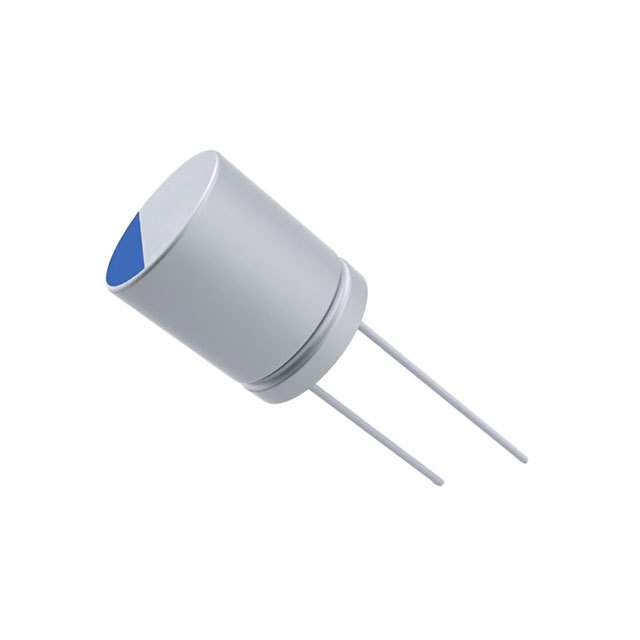

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

A750, Aluminum, Polymer Aluminum, 470 uF, 20%, 25 VDC, -55/+105°C, Lead Spacing = 5mm

Show

A750MS477M1EAAE015 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	25 V
Operating Voltage	25 VDC
Capacitance	470 µF
Equivalent Series Resistance (ESR)	0.015 Ω
Capacitance Tolerance	±20 %
Ripple Current	4.9 A
Ripple Current (Low Frequency)	245mA @120Hz
Ripple Current (High Frequency)	4.9A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	25 V
	Show
Size-Length	12 mm
Size-Height	12 mm
Size-Diameter	10.0 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Each
Life (Hours)	2000h @105℃
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17
