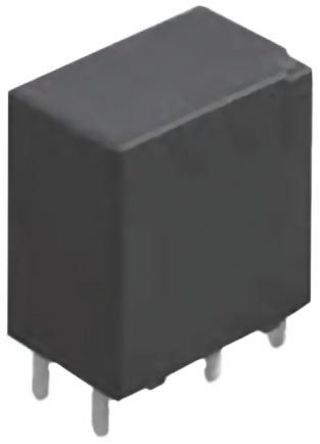

Image is for your reference only,please check specifications for details
- ACNH3212 - Panasonic Semiconductor
-
Manufacturer:Panasonic Semiconductor
-
ManyChip's Part#:MC20384588
-
Category:Power Relays
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Реле питания/сигнала, SPST, импульсное, 0,038 А (обмотка), 12 В пост. тока (обмотка), 450 мВт (обмотка), 30 А (контакт), 14 В пост. тока (контакт), вход постоянного тока, выход постоянного тока, монтаж в отверстие — прямой, соответствует требованиям ROHS
-
Stock Locations:
-
Availability:249 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.08
Updated at 01/11/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- *Серия ACNH**
- Эти автомобильные реле с высокой нагрузкой для монтажа на печатную плату отличаются компактными размерами и позволяют заменить микрореле с терминалами типа ISO. Типичные области применения таких реле для монтажа на печатную плату включают фары головного света, противотуманные фары, двигатели вентиляторов, обогреватели стекол и подогрев сидений.
ACNH3212 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | - |
| Voltage Rating (DC) | 14 V |
| Contacts Type | SPST-NO |
| Power Consumption | 450 mW |
| Contact Current Rating | 30 A |
| Coil Voltage | 12 VDC |
| Coil Current | 37.5 mA |
| Coil Resistance | 320 Ω |
| Current Rating (Max) | 30 A |
| Coil Voltage (DC) | 12 V |
| Coil Power | 450 mW |
| Operating Temperature (Max) | 110 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (DC Max) | 14 V |
| Show | |
| Size-Length | 17 mm |
| Size-Width | 10.6 mm |
| Size-Height | 18.3 mm |
| Contact Material | Silver Alloy |
| Operating Temperature | -40℃ ~ 110℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
