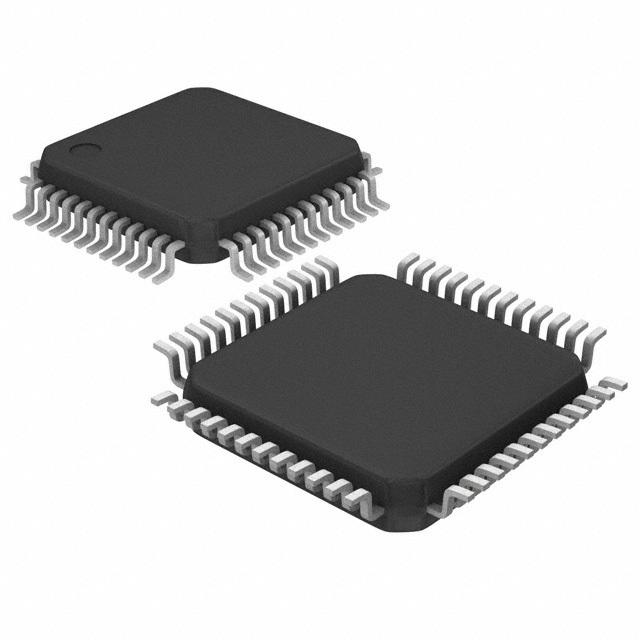

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DAC, Audio 26 b 48kHz DSP, I²S, SPI 48-LQFP (7x7)
AD1953YSTZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | LQFP-48 |
| Number of Outputs | 3 Output |
| Supply Current | 80.0 mA |
| Number of Channels | 3 Channel |
| Number of Bits | 26 Bit |
| Sample Rate | 48 ksps |
| Resolution (Bits) | 24.0 Bit |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 540 mW |
| Supply Voltage | 5 V |
| Show | |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
