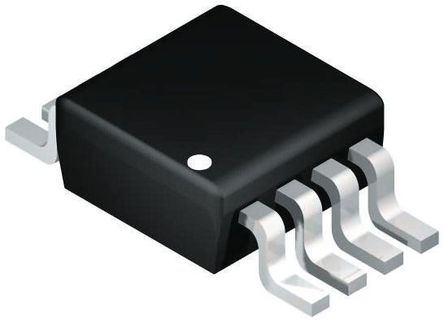

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Temperature Sensor Digital, Local -55°C ~ 125°C 11 b 8-uMAX
DS7505U+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | uSOP-8 |
| Supply Voltage (DC) | 1.70V (min) |
| Supply Current | 750 µA |
| Number of Positions | 8 Position |
| Number of Bits | 12 Bit |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Accuracy | ±0.5 ℃ |
| Supply Voltage | 1.7V ~ 3.7V |
| Supply Voltage (Max) | 3.7 V |
| Supply Voltage (Min) | 1.7 V |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.1 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
