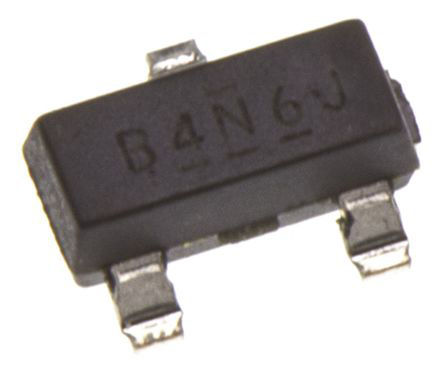

IRLML2502GTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.035 Ω |
| Polarity | N-Channel |
| Power Dissipation | 1.25 W |
| Threshold Voltage | 1.2 V |
| Drain to Source Voltage (Vds) | 20 V |
| Continuous Drain Current (Ids) | 4.2A |
| Rise Time | 10 ns |
| Input Capacitance (Ciss) | 740pF @15V(Vds) |
| Input Power (Max) | 1.25 W |
| Fall Time | 26 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 1.25W (Ta) |
| Show | |
| Size-Length | 3.04 mm |
| Size-Width | 2.64 mm |
| Size-Height | 1.02 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
