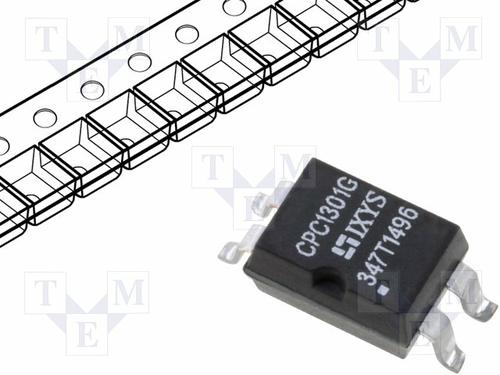

Image is for your reference only,please check specifications for details
- CPC1301GR - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC14732086
-
Category:Optocoupler, Optoisolator
-
Package:SOP-4
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler DC-IN 1CH Darlington DC-OUT 4Pin PDIP SMD Tube
-
Stock Locations:
-
Availability:310 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.23
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD
CPC1301GR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Rise/Fall Time | 40µs, 2.6µs |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.2 V |
| Power Dissipation | 0.15 W |
| Rise Time | 40 µs |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 1 mA |
| Output Voltage (Max) | 350 V |
| Reverse Breakdown Voltage | 5 V |
| Forward Current (Max) | 50 mA |
| Fall Time | 2.6 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 150 mW |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
