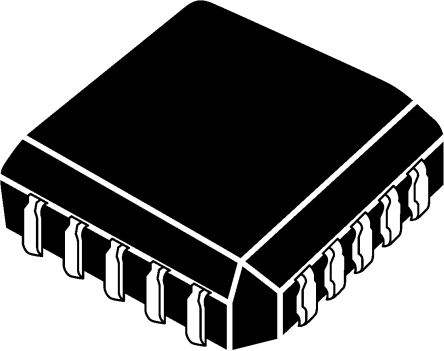

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD2S99BPZ is a Programmable Sinusoidal Oscillator provides sine wave excitation for resolvers and a wide variety of ac transducers. The AD2S99 also provides a synchronous reference output signal (3Vp-p square wave) that is phase locked to its SIN and COS inputs. In an application the SIN and COS inputs are connected to the transducers secondary windings. The synchronous reference output compensates for temperature and cabling dependent phase shifts and eliminates the need for external preset phase compensation circuits. The synchronous reference output can be used as a zero crossing reference for resolver-to-digital converters such as Analog Devices AD2S80A, AD2S82A, AD2S83 and AD2S90.
Dynamic phase compensation
Programmable excitation frequency
Signal loss detection
Synthesized synchronous reference output
Loss-of-signal indicator
Integrates the transducer excitation, synchronous reference & loss of signal detection functions
ESD sensitive device. Electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

AD2S99BPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PLCC-20
Frequency	20 kHz
Supply Voltage (DC)	-4.75 V (min)
Supply Current	8 mA
Number of Positions	20 Position
Load Capacitance	1000 pF
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
	Show
Size-Length	9.04 mm
Size-Width	8.38 mm
Size-Height	3.68 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
