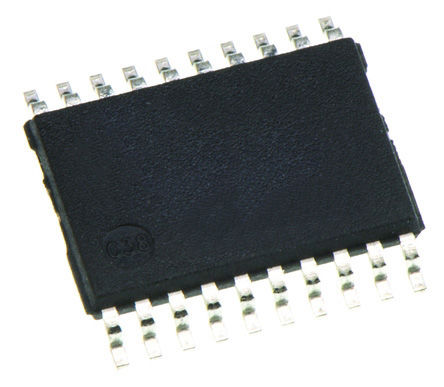

Image is for your reference only,please check specifications for details
- PCM5100APW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8436793
-
Category:Digital to Analog, DAC IC
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:2VRMS DirectPath, 100dB Audio Stereo DAC with 32Bit, 384kHz PCM Interface 20-TSSOP -25 to 85
-
Stock Locations:
-
Availability:142 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.79
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The PCM510xA devices are a family of monolithic CMOS-integrated circuits that include a stereo digital to-analog converter and additional support circuitry in a small TSSOP package. The PCM510xA devices use the latest generation of TI’s advanced segment DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
- Features
- • Ultra Low Out-of-Band Noise
- • Integrated High-Performance Audio PLL with BCK Reference to Generate SCK Internally
- • Direct Line Level 2.1-VRMS Output
- • No DC Blocking Capacitors Required
- • Line Level Output Down to 1KΩ
- • Intelligent Muting System; Soft Up or Down Ramp and Analog Mute For 120-dB Mute SNR
- • Accepts 16-, 24-, and 32-Bit Audio Data
- • PCM Data Formats: I2S, Left-Justified
- • Automatic Power-Save Mode When LRCK And BCK Are Deactivated
- • 1.8 V or 3.3 V Failsafe LVCMOS Digital Inputs
- • Simple Configuration Using Hardware Pins
- • Single-Supply Operation: 14
- – 3.3 V Analog, 1.8 V or 3.3 V Digital
- • Qualified in Accordance with AEC-Q100
- Applications
- • A/V Receivers, DVD, BD Players
- • Automotive Infotainment and Telematics
- • HDTV Receivers
- • Aftermarket Automotive Amplifiers
PCM5100APW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Number of Outputs | 2 Output |
| Number of Channels | 2 Channel |
| Number of Bits | 32 Bit |
| Power Dissipation | 0.187 W |
| Sample Rate | 384 ksps |
| Power Consumption | 59.4 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 187 mW |
| Supply Voltage | 1.65V ~ 3.46V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
