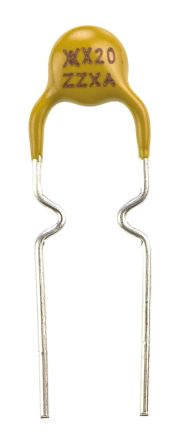

Image is for your reference only,please check specifications for details
- RXEF020 - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC2582500
-
Category:Fuse
-
Package:Through Hole
-
Datasheet:Datasheet 3D Model
-
Description:PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 72V 40A 0.41W 2.2s 1.83Ω Radial 7.4 X 3mm Bag
-
Stock Locations:
-
Availability:3 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.2
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Polymeric PTC Resettable Fuse 72V 200mA Ih Through Hole Radial, Disc
RXEF020 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | Through Hole |
| Pin Pitch | 5.8 mm |
| Voltage Rating (DC) | 72.0 V |
| Operating Voltage | 72 V |
| Time to Trip | 2.2 s |
| Power Dissipation | 0.41 W |
| Resistance | 4.4 Ω |
| Holding Current | 200 mA |
| Trip Current | 400 mA |
| Current Rating (Max) | 40 A |
| Holding Current (Max) | 200 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (Max) | 72 V |
| Voltage Rating | 72 VDC |
| Show | |
| Size-Length | 11.7 mm |
| Size-Height | 11.7 mm |
| Size-Thickness | 3 mm |
| Cord Length | 7.6 m |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bag |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
