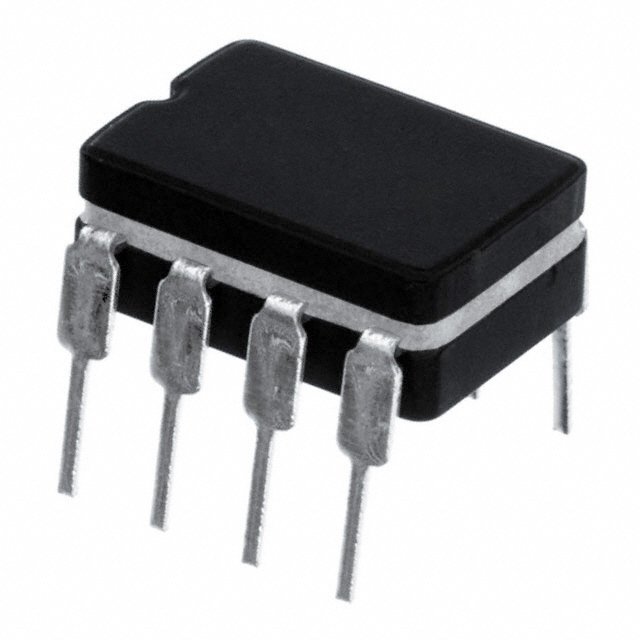

Image is for your reference only,please check specifications for details

LM741J - TI
Manufacturer:
TI
ManyChip's Part#:
MC11931765
Category:
Operational Amplifier, OP Amp IC
Package:
CDIP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM741J Operational Amplifier, Single, 1 Amplifier, 1MHz, 0.5V/µs, 10V to 44V, DIP, 8Pins
Stock Locations:
Availability:
217 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM741J is a general-purpose Operational Amplifier offers many features which make their application nearly foolproof, overload protection on the input and output, no latch-up when the common-mode range is exceeded, as well as freedom from oscillations.
Overload protection on the input and output
No latch-up when the common-mode range is exceeded
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

LM741J Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	CDIP-8
Output Current	25 mA
Supply Current	1.7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	500 mW
Common Mode Rejection Ratio	80 dB
Input Offset Drift	15.0 µV/K
Bandwidth	1 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1.5 MHz
Input Offset Voltage	1 mV
Input Bias Current	80 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	70 dB
Power Dissipation (Max)	500 mW
Minimum CMRR Range	70 dB
Supply Voltage	10V ~ 44V
Supply Voltage (Max)	44 V
Supply Voltage (Min)	10 V
	Show
Size-Length	10.16 mm
Size-Width	7.87 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
