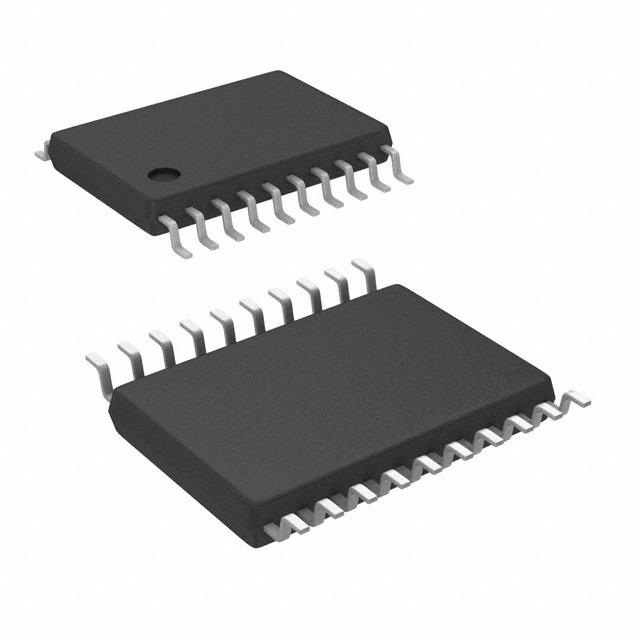

Image is for your reference only,please check specifications for details
- AD5254BRU10 - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC48823948
-
Category:Digital Potentiometer IC
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Digital Potentiometer 10KΩ 256POS Non-Volatile Linear 20Pin TSSOP Tube
-
Stock Locations:
-
Availability:1,242 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 13.82
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Digital Potentiometer 10k Ohm 4 Circuit 256 Taps I²C Interface 20-TSSOP
AD5254BRU10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Capacitance Tolerance | ±20 % |
| Supply Current | 3.00 µA |
| Number of Circuits | 4 Circuit |
| Number of Positions | 256 Position |
| Clock Speed | 400kHz (max) |
| Resistance | 10 kΩ |
| Quiescent Current | 5.00 µA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Temperature Coefficient | ±650 ppm/℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
