Description
- Product Details

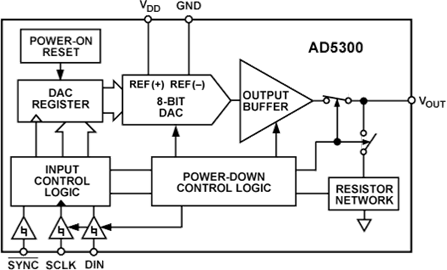

- The AD5300 is a single, 8-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply consuming 115 µA at 3 V. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved.The AD5300 utilizes a versatile three-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI™,QSPI™,MICROWIRE™ and DSP interface standards.
- **Product Highlights**
- * Available in 6-lead SOT-23 and 8-lead MicroSOIC packages.
- * Low power, single supply operation from 2.7 V to 5.5 V supply
- * Consumes 0.35 mW at 3 V and 0.7 mW at 5 V
- * Rail-to-Rail output with a slew rate of 1 V/µs.
- * Reference derived from the power supply.
- * High speed serial interface with clock speeds up to 30 MHz.
- * Pin and Software Compatible with the AD5300 (8-Bit) and the AD5320 (12-bit)
- The reference for AD5300 is derived from the power supply inputs and thus gives the widest dynamic output range.The part incorporates a power-on-reset circuit that ensures that the DAC output powers up to zero volts and remains there until a valid write takes place to the device.The part contains a power-down feature that reduces the current consumption of the device to 200 nA at 5 V and provides software selectable output loads while in power-down mode.The part is put into power-down mode over the serial interface.
- The low power consumption of this part in normal operation makes it ideally suited to portable battery operated equipment. The power consumption is 0.7 mW at 5 V reducing to 1 µW in power-down mode.
- The AD5300 is one of a family of pin-compatible DACs. The AD5310 is the 10-bit version and the AD5320 is the 12-bit version.The AD5300/AD5310/AD5320 are available in 6-lead SOT-23 packages and 8-lead µSOIC packages.
- Related Products
- ---
- **AD5601**** ** | 2.7 V to 5.5 V, <100 µA, 8-Bit nanoDAC™ D/A Converter, SPI Interface, SC70 Package
- ### Features and Benefits
- Micropower: 140 µA @ 5 V, 115 µA @ 3 V
- Power-Down to 200 nA @ 5 V, 50 nA @ 3 V
- Guaranteed Monotonic by Design
- Power-On-Reset to Zero Volts
- Low Power, SPI™, QSPI™, MICROWIRE™ and DSP Compatible 3-Wire Serial Interface
- Three Power-Down Functions
- Output Buffer Amplifier with Rail-to-Rail Operation
- SYNC(active low) Interrupt Facility
- Temperature Range: -40°C to 105°C
AD5300 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
