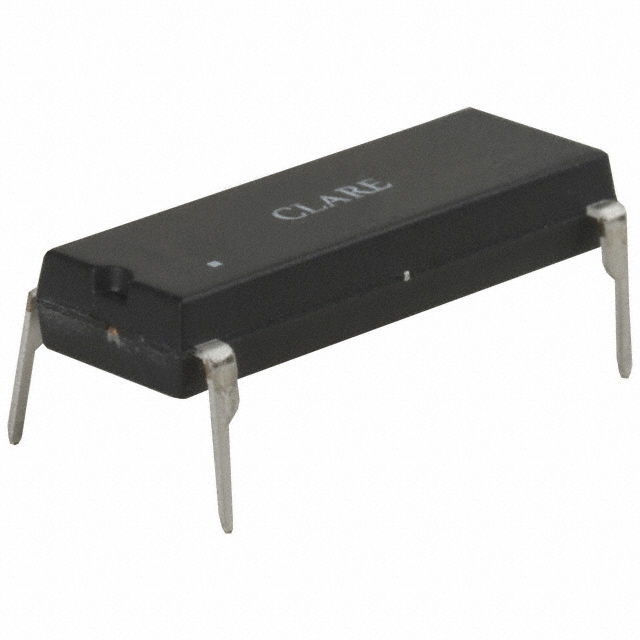

Image is for your reference only,please check specifications for details
- CPC1965G - IXYS Semiconductor
-
Manufacturer:IXYS Semiconductor
-
ManyChip's Part#:MC19356596
-
Category:Solid State Relay
-
Package:DIP-16
-
Datasheet:Datasheet 3D Model
-
Description:Relay SSR 50mA 1.4V DC-IN 1A 260V AC-OUT 4Pin DIP Tube
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.22
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NO (1 Form A) 16-DIP (0.300", 7.62mm), 4 Leads
CPC1965G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | DIP-16 |
| Output Voltage | 600 V |
| Output Current | ≤1.00 A |
| Contacts Type | SPST-NO |
| Load Current | 1 A |
| Input Current | 50 mA |
| Isolation Voltage | 3750 v |
| Input Voltage (Max) | 1.4 V |
| Input Voltage (Min) | 0.9 V |
| Output Voltage (Max) | 260 V |
| Input Current (Min) | 50 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Operating Voltage (Min) | 20 V |
| Operating Voltage (Max) | 260 V |
| Input Voltage | 1.2 VDC |
| Show | |
| Size-Length | 19.2 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.30 mm |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
