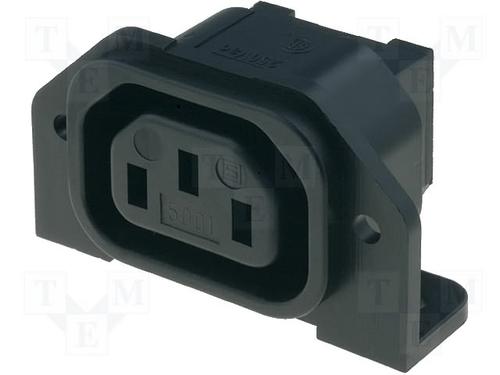

Image is for your reference only,please check specifications for details

6182.0033 - Schurter
Manufacturer:
Schurter
ManyChip's Part#:
MC11008100
Category:
Power Entry Module
Datasheet:
Datasheet 3D Model
Description:
SCHURTER 6182.0033 Power Entry Connector, 5001 Series, Receptacle, 250V, 15A, Panel Mount, Through Hole
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

6182.0033 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	3 Contact
Gender	Female
Voltage Rating (DC)	250 V
Voltage Rating (AC)	250 V
Current Rating	15 A
Number of Positions	3 Position
Current Rating (Max)	15 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 V
	Show
Size-Length	50 mm
Size-Width	36.4 mm
Size-Height	30.35 mm
Color	Black
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536698000
ECCN Code	EAR99
