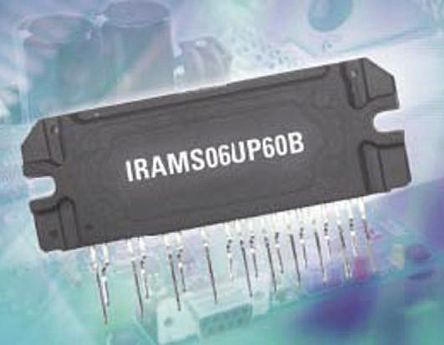

Image is for your reference only,please check specifications for details

IRAMS06UP60B - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC15734803
Category:
Motor Driver
Package:
SIP-1
Datasheet:
Datasheet 3D Model
Description:
INFINEON IRAMS06UP60B IGBT Array & Module Transistor, N Channel, 6A, 600V, 7.5W, 600V, Module
Stock Locations:
Availability:
131 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.77

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Power Driver Module IGBT 3 Phase 600V 6A 23-PowerSIP Module, 19 Leads, Formed Leads

Show

IRAMS06UP60B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	23 Pin
Case/Package	SIP-1
Frequency	20.0 kHz
Number of Outputs	3 Output
Output Voltage	450 V
Output Current	6 A
Number of Channels	3 Channel
Polarity	N-Channel
Power Dissipation	7.5 W
Isolation Voltage	2000 Vrms
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	12.20 VDC
	Show
Size-Length	62 mm
Size-Width	5 mm
Size-Height	22.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
