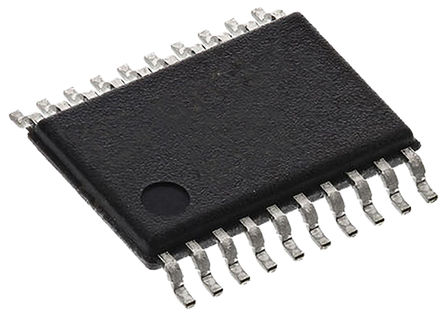

Image is for your reference only,please check specifications for details
- SN74AHCT273PWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC5648450
-
Category:Flip Flops
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Устройство типа “Flip Flop” D-Type Bus Interface Pos-Edge 1Element 20Pin TSSOP T/R от Texas Instruments – отличный вариант для хранения простой информации о состоянии устройства. У него односторонний выходной сигнал. Диапазон рабочих температур составляет от -40 °C до 125 °C. Покупка этого устройства осуществляется в виде ленты и рулонов, что обеспечивает безопасную доставку и удобство монтажа компонентов. Типовое напряжение питания составляет 5 В; минимальное значение – 4,5 В, а максимальное – 5,5 В. На одном чипе расположено 8 каналов.
-
Stock Locations:
-
Availability:9,900 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.13
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Достаточно обратиться к устройству SN74AHCT273PWR от Texas Instruments – это отличный вариант для хранения простой информации о состоянии устройства. У этого флоппи-устройства выходной сигнал одного типа. Диапазон рабочих температур составляет от -40 °C до 125 °C. Продукт упаковывается в специальные коробки для безопасной доставки и удобства установки компонентов. Минимальное напряжение питания составляет 4,5 В, а максимальное – 5,5 В. На одном чипе имеется 8 каналов.
SN74AHCT273PWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Frequency | 45 MHz |
| Supply Voltage (DC) | 4.50V ~ 5.50V |
| Number of Outputs | 8 Output |
| Number of Circuits | 8 Circuit |
| Number of Channels | 8 Channel |
| Clock Speed | 75 MHz |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 11.6 ns |
| Polarity | Non-Inverting |
| Voltage Nodes | 5.00 V |
| Input Capacitance | 2.5 pF |
| Output Current Drive | -1.00 mA |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
