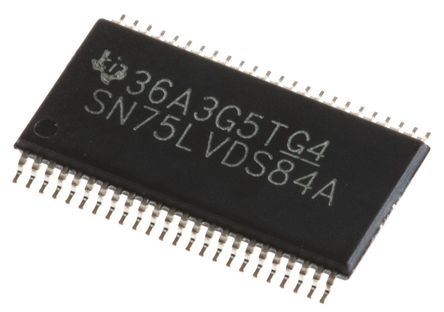

Image is for your reference only,please check specifications for details
- SN75LVDS84ADGG - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8623830
-
Category:Interface IC, Interface Controller
-
Package:TSSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:Texas Instruments SN75LVDS84ADGG, LVDS Transmitter 21-TX TTL LVDS, 3 → 3.6V, 48Pin, TSSOP
-
Stock Locations:
-
Availability:51 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.81
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN75LVDS84ADGG is a FlatLink™ Transmitter contains three 7-bit parallel-load serial-out shift registers and four low-voltage differential signalling (LVDS) line drivers in a single integrated circuit. These functions allow 21 bits of single-ended LVTTL data to be synchronously transmitted over 3 balanced-pair conductors for receipt by a compatible receiver, such as the SN75LVDS82 or SN75LVDS86/86A. When transmitting, data bits D0-D20 are each loaded into registers of the LVDS84A upon the falling edge. The internal PLL is frequency-locked to CLKIN and then used to unload the data registers in 7-bit slices. The three serial streams and a phase-locked clock (CLKOUT) are then output to LVDS output drivers. The frequency of CLKOUT is the same as the input clock, CLKIN. The LVDS84A requires no external components and little or no control. The data bus appears the same at the input to the transmitter and output of the receiver with the data transmission transparent to the user(s).
- 21:3 Data channel compression at up to 196Mbps throughput
- Suited for SVGA, XGA or SXGA data transmission from controller to display with very low EMI
- Consumes less than 0.54mW when disabled
- No external components required for PLL
- Outputs meet or exceed the requirements of ANSI EIA/TIA-644 standard
- SSC tracking capability of 3% centre spread at 50kHz modulation frequency
- Improved replacement for SN75LVDS84 and NSCs DS90CF363A 3V device
- 31 to 75MHz Wide phase-lock input frequency range
- Green product and no Sb/Br
SN75LVDS84ADGG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 35.0 mA |
| Number of Positions | 48 Position |
| Power Dissipation | 1637 W |
| Data Rate | 197 Mbps |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 1637 mW |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 12.5 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
