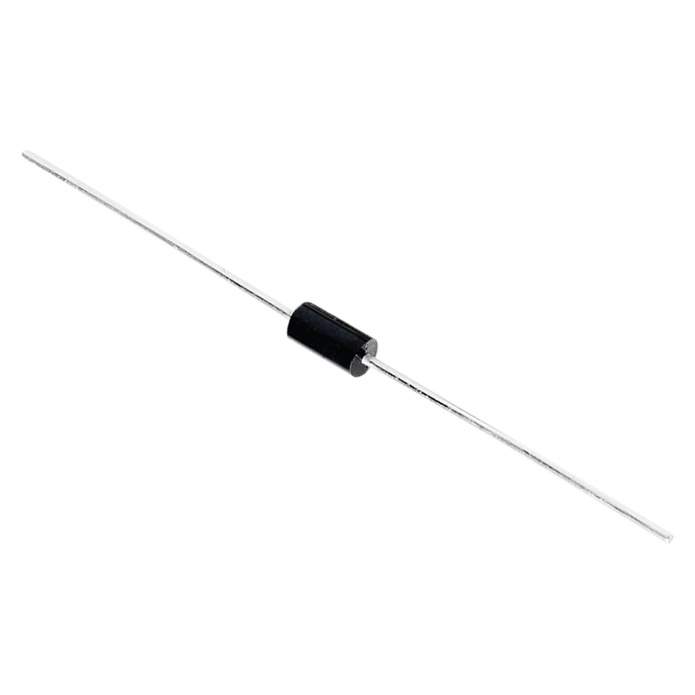

Image is for your reference only,please check specifications for details
- SA15CA - Littelfuse
-
Manufacturer:Littelfuse
-
ManyChip's Part#:MC11668439
-
Category:TVS Diode
-
Package:DO-204AC-2
-
Datasheet:Datasheet 3D Model
-
Description:LITTELFUSE SA15CA TVS Diode, SA Series, Bidirectional, 15V, 24.4V, DO-204AC, 2Pins
-
Stock Locations:
-
Availability:4,867 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.32
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SA Series is designed specifically to protect sensitive electronics equipment from voltage transients induced by lightning and other transient voltage events. These devices are ideal for the protection of I/O interfaces, Vcc bus and other vulnerable circuits used in computer and consumer electronic applications.
- FEATURES
- •RoHS Compliant
- • 5.0 to 180 Volts
- • Uni-directional and Bi-directional
- • Glass passivated chip junction
- • 500W peak pulse power capability on 10/1000µs waveform
- • Excellent clamping capability
- • Repetition rate (duty cycle): 0.01%
- •Low incremental surge resistance
- •Fast response time: typically less than 1.0ps from 0 Volts to BV for unidirectional and 5.0ns for bidirectional types
- •Typical IR less than 1µA above 10V
- •High temperature soldering guaranteed: 265˚C/10 seconds/.375",(9.5mm) lead length, 5lbs.,(2.3kg) tension
SA15CA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-204AC-2 |
| Voltage Rating (DC) | 15.0 V |
| Operating Voltage | 15 V |
| Capacitance | 1200 pF |
| Power Rating | 500 W |
| Breakdown Voltage | 18.5 V |
| Number of Circuits | 1 Circuit |
| Number of Positions | 2 Position |
| Power Dissipation | 500 W |
| Clamping Voltage | 24.4 V |
| Test Current | 1 mA |
| Max Breakdown Voltage | 18.5 V |
| Peak Pulse Power | 500 W |
| Min Breakdown Voltage | 16.7 V |
| Reverse Breakdown Voltage | 16.7 V |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | -65℃ ~ 175℃ |
| Show | |
| Size-Length | 7.60 mm |
| Size-Diameter | 3.60 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
