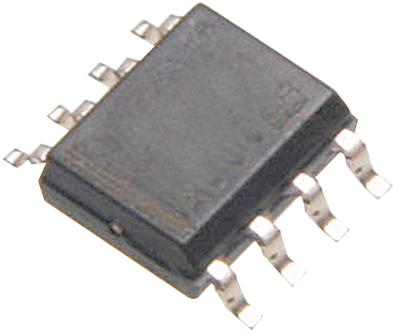

AD8052ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC249040
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8052ARZ Operational Amplifier, Dual, 2 Amplifier, 110MHz, 145V/µs, 3V to 12V, SOIC, 8Pins
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8052ARZ is a high speed dual Voltage Feedback Amplifier for use with analog-to-digital drivers. It has true single-supply capability with an input voltage range extending 200mV below the negative rail and within 1V of the positive rail. The AD8052 provides excellent overall performance and versatility. The output voltage swings to within 25mV of each rail, providing maximum output dynamic range with excellent overdrive recovery. The AD8052 is well suited for video electronics, cameras, video switchers or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.
Single-supply operation
Low distortion
Outstanding load drive capability
50ns Settling time to 0.1%
Output swings to within 25mV of either rail
0.03%/0.03° Differential gain/phase
4.4mA/amplifier Low power

Show

AD8052ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	5.00 V
Operating Voltage	3V ~ 5V
Output Current	45mA @5V
Supply Current	4.8 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	72 dB
Input Capacitance	1.40 pF
Bandwidth	110 MHz
Slew Rate	145 V/μs
Gain Bandwidth Product	80 MHz
Input Impedance	290 kΩ
Gain	1.00 dB
Input Offset Voltage	1.8 mV
Input Bias Current	1.4 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	110 MHz
Gain Bandwidth	72 dB
Minimum CMRR Range	72 dB
Supply Voltage	3V ~ 12V
Supply Voltage (Max)	5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
