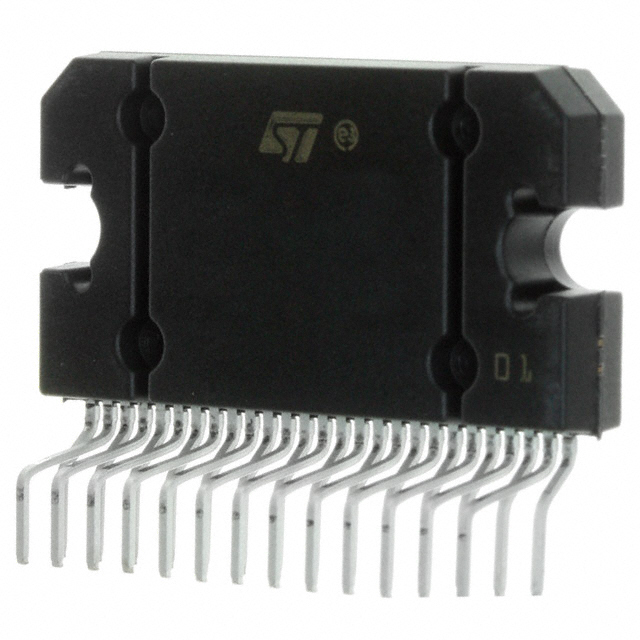

Image is for your reference only,please check specifications for details
- TDA7851A - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC6981287
-
Category:Audio Amplifier IC
-
Package:27-Flexiwatt
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 4CH Stereo 48W Class-AB 27Pin FLEXIWATT Tube
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 10.07
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Bring some extra strength to your music with this TDA7851A class D amplifier manufactured from STMicroelectronics. Its maximum power dissipation is 85000 mW. This audio amplifier can handle a current up to 10000 mA. It has a maximum load resistance of 4 Ohm. It has a single input signal and a differential output signal. It has a 4-channel stereo output. This audio amplifier has a maximum operating temperature of 150 °C. This device uses a single power supply.
TDA7851A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 27 Pin |
| Case/Package | 27-Flexiwatt |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 27 Position |
| Power Dissipation | 85 W |
| Output Power | 48 W |
| Gain | 26 dB |
| Output Current (Max) | 10000 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 85000 mW |
| Supply Voltage | 8V ~ 18V |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
