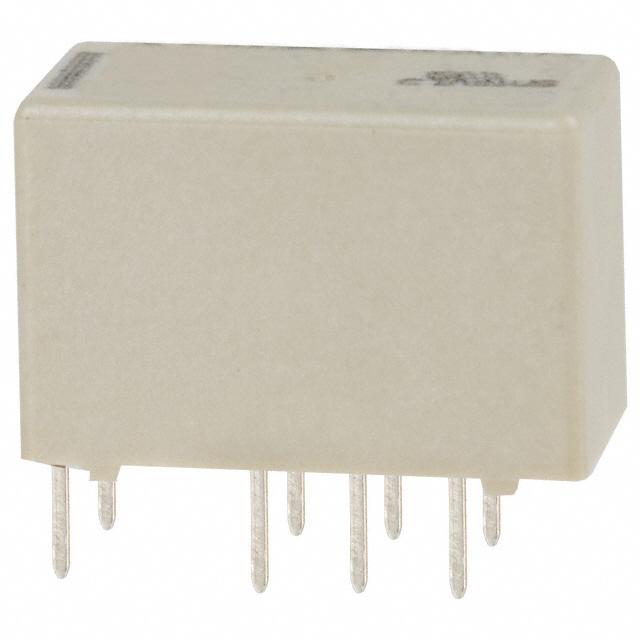

V23079B1203B301 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC24739363
Category:
Industrial Relay
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
Signal Relay 12VDC 2A DPDT (( 14.5mm 7.2mm 9.8mm)) Through Hole Automotive Medical
Stock Locations:
Availability:
3 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.51

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The P2/V23079 series from TE Connectivity are through hole signal relays. These relays are used in communications equipment, linecard application (ringing and test access), PABX, voice over IP, office equipment, measurement and control equipment, CAN bus, keyless entry, speaker switch, set top boxes and Hi-Fi applications.
DPDT contact configuration
Monostable DC coils available based on ordering
Switching capacity of 2A at 220VDC, 250VAC
High sensitivity for low power consumption 140mW/70mW
Single coil version with surge voltage resistance between contact and coil
UL and IEC/EN60950 compliant
Coil voltage ranges from 2VDC to 24VDC
15mm x 7.5mm size

Show

V23079B1203B301 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	DIP
Current Rating	2 A
Insulation Resistance	>1000 MΩ
Input Voltage (DC)	12.0 V
Contacts Type	DPDT
Power Consumption	140 mW
Contact Current Rating	2.00 A
Coil Voltage	12 VDC
Coil Current	11.66 mA
Coil Power (DC)	400 mW
Coil Resistance	1.029 kΩ
Current Rating (Max)	2 A
Coil Voltage (DC)	12 V
Coil Power	140 mW
Input Power (Max)	60W, 62.5VA
Switching Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
Maximum Contact Resistance (Max)	<50 mΩ
	Show
Size-Length	14.5 mm
Size-Width	7.2 mm
Size-Height	9.8 mm
Contact Material	Silver Nickel
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
HTS Code	8536410050
ECCN Code	EAR99
