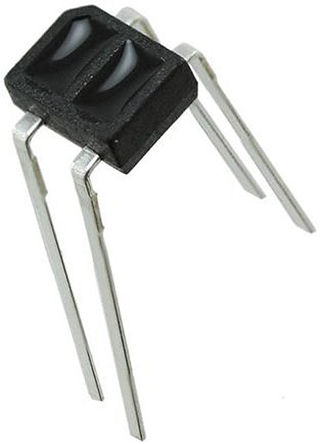

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The QRE1113 is a Miniature Reflective Object Sensor with photo transistor output. No contact surface sensing. Gull wing lead form. Through-hole 2lead form.
-40 to 85°C Operating temperature

Show

QRE1113 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-4
Output Voltage	30 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.2 V
Wavelength	940 nm
Input Current	50 mA
Peak Wavelength	940 nm
Power Dissipation	75 mW
Rise Time	20 µs
Breakdown Voltage (Collector to Emitter)	30 V
Forward Current	50 mA
Reverse Breakdown Voltage	5 V
Forward Current (Max)	50 mA
Fall Time	20 µs
Fall Time (Max)	20000 ns
Fall Time (Max)	20000 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75 mW
	Show
Size-Length	3.6 mm
Size-Width	2.9 mm
Size-Height	1.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
