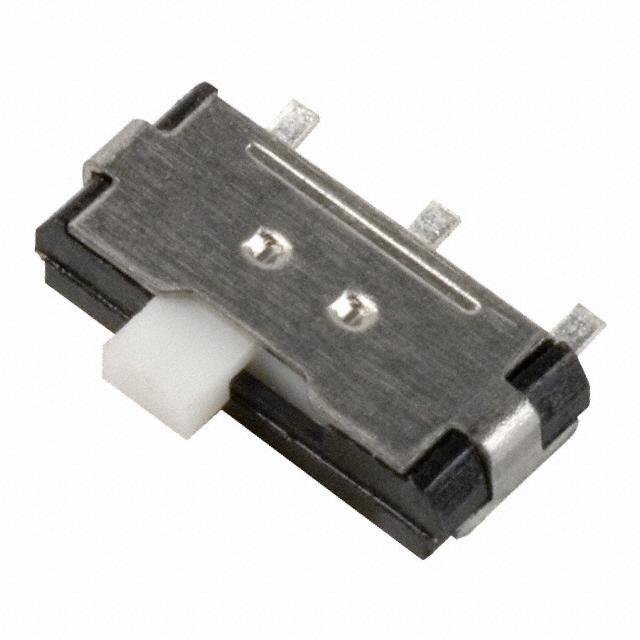

Image is for your reference only,please check specifications for details

AYZ0102AGRLC - C&K Components
Manufacturer:
C&K Components
ManyChip's Part#:
MC1887338
Category:
Slide Switch, Switch Slide
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:
Switch Slide ON ON SPDT Side Slide 0.1A 12VDC 1.2VA 10000Cycle Gull Wing SMD T/R
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.1

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AYZ0102AGRLC is a single-pole double-throw (SPDT) horizontal low profile Miniature Slide Switch with SMD mounting and ON-ON function. The AYZ series switch has silver plated copper alloy movable contact, glass filled nylon 4/6 housing, glass filled nylon 6/6 actuator and nickel silver cover.
80mR Maximum contact resistance
0.1kV at 50Hz/1min Dielectric strength

Show

AYZ0102AGRLC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMD
Voltage Rating (DC)	12 V
Current Rating	100mA (DC)
Orientation	Horizontal
Contacts Type	SPDT
Current Rating (Max)	0.1 A
Input Power (Max)	1.2 VA
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating (DC Max)	12 V
Maximum Contact Resistance (Max)	<80 mΩ
	Show
Size-Height	1.5 mm
Contact Material	Copper Alloy
Operating Temperature	-10℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509050
ECCN Code	EAR99
