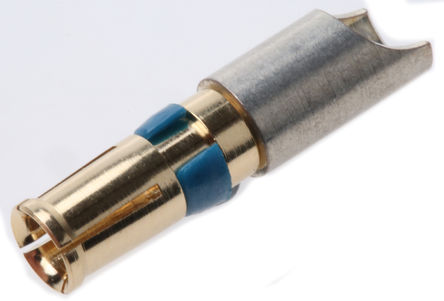

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

8638PSS1005LF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Gender	Female
Wire Gauge	16 AWG
Contact Plating	Gold
Current Rating	10 A
Current Rating (Max)	10 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	21.8 mm
Size-Width	5.5 mm
Size-Height	5.5 mm
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
