Image is for your reference only,please check specifications for details
- AD5535BKBCZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC2622793
-
Category:Digital to Analog, DAC IC
-

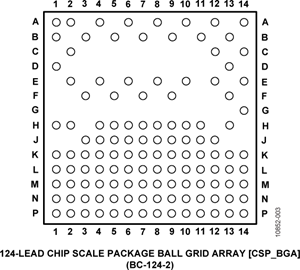

Package:BGA-124
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD5535BKBCZ Digital to Analog Converter, 14Bit, 1.2MSPS, Serial, 4.75V to 5.25V, CSPBGA, 124Pins
-
Stock Locations:
-
Availability:312 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 211.29
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD5535B is a 32-channel, 14-bit _dense_DAC® with an on-chip high voltage output amplifier. This device is targeted for optical micro-electromechanical systems. The output voltage range is programmable via the REF_IN pin. The output range is 0 V to 50 V when REF_IN = 1 V, and 0 V to 200 V when REF_IN = 4 V. Each amplifier can source 700 μA, which is ideal for the deflection and control of optical MEMS mirrors.
- The selected digital-to-analog converter (DAC) register is written to via the 3-wire interface. The serial interface operates at clock rates of up to 30 MHz and is compatible with DSP and micro-controller interface standards.
- The device is operated with AVCC = 4.75 V to 5.25 V, DVCC = 2.7 V to 5.25 V, V+ = 4.75 V to 5.25 V, and VPP of up to 225 V. REF_IN is buffered internally on the AD5535B and should be driven from a stable reference source.
- **APPLICATIONS**
- Optical micro-electromechanical systems (MEMS)
- Optical crosspoint switches
- Micropositioning applications using piezoelectric actuators
- Level setting in automotive test and measurement
- ### Features and Benefits
- High integration
- \-- 32-channel, 14-bit denseDAC® with integrated high voltage output amplifier
- Guaranteed monotonic
- Housed in 15 mm × 15 mm CSP_BGA package
- Full-scale output voltage
- \-- Programmable from 50 V to 200 V via reference input
- 550 µA drive capability
- Integrated silicon diode for temperature monitoring
- DSP-/microcontroller-compatible serial interface
- 1.2 MHz channel update rate
- Asynchronous RESET facility
- –10°C to +85°C temperature range
AD5535BKBCZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 124 Pin |
| Case/Package | BGA-124 |
| Number of Outputs | 32 Output |
| Supply Current | 17.5 mA |
| Number of Channels | 32 Channel |
| Number of Positions | 124 Position |
| Number of Bits | 14 Bit |
| Power Dissipation | 500 mW |
| Sample Rate | 1.20 MHz |
| Resolution (Bits) | 14.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Number of DACs | 32 DAC |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 15.1 mm |
| Size-Width | 15.1 mm |
| Size-Height | 1.25 mm |
| Operating Temperature | -10℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2016/06/20 |
| ECCN Code | EAR99 |
