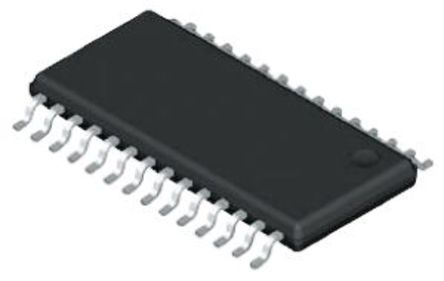

Image is for your reference only,please check specifications for details

AD5546BRUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC702050
Category:
Digital to Analog, DAC IC
Package:
TSSOP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD5546BRUZ Digital to Analog Converter, 16Bit, 2MSPS, Parallel, 2.7V to 5.5V, TSSOP, 28Pins
Stock Locations:
Availability:
312 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 33.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD5546BRUZ is a precision 16-bit multiplying low power current output parallel input Digital-to-analog Converter (DAC) operates from a single 2.7 to 5.5V supply with ±10V multiplying references for four-quadrant outputs. Built-in 4-quadrant resistors facilitate the resistance matching and temperature tracking that minimizes the number of components needed for multi-quadrant applications. The feedback resistor (RFB) simplifies the I-V conversion with an external buffer.
0.5µs Settling time
Built-in RFB facilitates current-to-voltage conversion

Show

AD5546BRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TSSOP-28
Number of Outputs	1 Output
Supply Current	10.0 µA
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	16 Bit
Power Dissipation	0.000055 W
Sample Rate	2 Msps
Resolution (Bits)	16.0 Bit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	0.055 mW
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 5.5V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
