Description
- Product Details

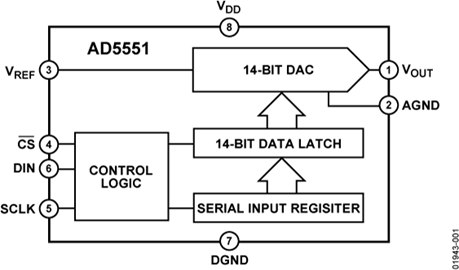

- The AD5551 and AD5552 are single, 14-bit, serial input, voltage output DACs that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF.
- These DACs provide 14-bit performance without any adjustments. The DAC output is unbuffered, which reduces power consumption and offset errors contributed by an output buffer.
- With an external op amp the AD5552 can be operated in bipolar mode generating a ±VREF output swing. The AD5552 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity. For higher precision applications, please refer to 16-bit DACs, AD5541, AD5542, and AD5544.
- The AD5551/AD5552 utilize a versatile 3-wire interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. The AD5551 and AD5552 are available in 8-lead and 14-lead SOIC packages.
- **Product Highlights**
- 1. Single Supply Operation. The AD5551 and AD5552 are fully specified and guaranteed for a single 2.7 V to 5.5 V supply.
- 2. Low Power Consumption. Typically 0.625 mW with a 5 V supply.
- 3. 3-Wire Serial Interface.
- 4. Unbuffered output capable of driving 60 kΩ loads, which reduces power consumption as there is no internal buffer to drive.
- 5. Power-On Reset Circuitry.
- **Applications**
- Digital gain and offset adjustment
- Automatic test equipment
- Data acquisition systems
- Industrial process control
- ### Features and Benefits
- Full 14-Bit Performance
- 3 V and 5 V Single Supply Operation
- Low 0.625 mW power dissipation
- Fast 1 μs settling time
- Unbuffered Voltage Output Capable of Driving 60 kΩ Loads Directly
- SPI™/QSPI™/MICROWIRE™ -Compatible Interface Standards
- Power-on reset clears DAC output to 0 V (unipolar mode)
- 5 kV HBM ESD classification
AD5551 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
