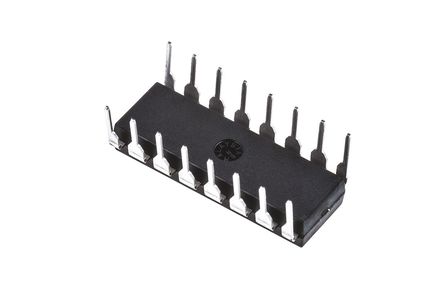

Image is for your reference only,please check specifications for details

AD557JNZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC389154
Category:
Digital to Analog, DAC IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD557JNZ Digital to Analog Converter, 8Bit, 1.25MSPS, Serial, 4.5V to 5.5V, DIP, 16Pins
Stock Locations:
Availability:
254 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 30.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD557JNZ is a complete voltage-output 8-bit Digital-to-analog Converter (DAC) including output amplifier, full microprocessor interface and precision voltage reference on a single monolithic chip. No external components or trims are required to interface with full accuracy, an 8-bit data bus to an analog system. The complete microprocessor interface and control logic is implemented with integrated injection logic, an extremely dense and low-power logic structure that is process-compatible with linear bipolar fabrication. The internal precision voltage reference is patented low-voltage band-gap circuit which permits full-accuracy performance on a single 5V power supply. Thin-film silicon-chromium resistors provide the stability required for guaranteed monotonic operation over the entire operating temperature range, while laser-wafer trimming of these thin-film resistors permits absolute calibration at the factory to within ±2.5LSB thus no user-trims for gain or offset are required.
Internal precision band-gap reference
Full microprocessor interface
No user trims required
Guaranteed monotonic over temperature
All errors specified Tmin to Tmax
µP-Compatible

Show

AD557JNZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Operating Voltage	4.5V ~ 5.5V
Number of Outputs	1 Output
Supply Current	15.0 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	8 Bit
Power Dissipation	125 mW
Sample Rate	1.25 Msps
Resolution (Bits)	8.0 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	125 mW
Number of DACs	1 DAC
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	22.1 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
