Image is for your reference only,please check specifications for details
- AD5761RBRUZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC6144671
-
Category:Digital to Analog, DAC IC
-
Package:TSSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD5761RBRUZ Digital to Analog Converter, Bipolar / Unipolar, 16Bit, Serial, 4.75V to 30V, TSSOP, 16Pins
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 115.79
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details

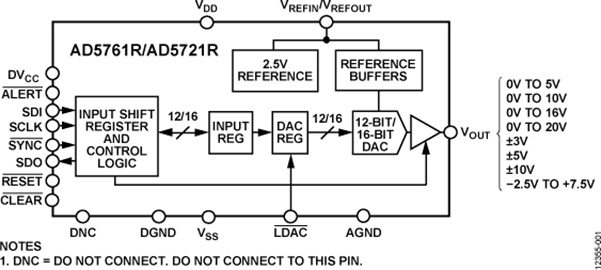

- The AD5761R/AD5721R are single channel, 16-/12-bit serial input, voltage output, digital-to-analog converters (DACs). They operate from single supply voltages from 4.75 V to 30 V or dual supply voltages from −16.5 V to 0 V VSS and 4.75 V to 16.5 V VDD. The integrated output amplifier, reference buffer, and reference provide a very easy to use, universal solution.
- The devices offer guaranteed monotonicity, integral nonlinearity (INL) of ±2 LSB maximum, 35 nV/√Hz noise, and 7.5 µs settling time on selected ranges.
- The AD5761R/AD5721R use a serial interface that operates at clock rates of up to 50 MHz and are compatible with DSP and microcontroller interface standards. Double buffering allows the asynchronous updating of the DAC output. The input coding is user-selectable twos complement or straight binary. The asynchronous reset function resets all registers to their default state. The output range is user selectable, via the RA[2:0] bits in the control register.
- The devices available in a 3 mm × 3 mm LFCSP package and a 16-lead TSSOP package offer guaranteed specifications over the −40°C to +125°C industrial temperature range.
- Applications
- Industrial automation
- Instrumentation, data acquisition
- Open-/closed-loop servo control, process control
- Programmable logic controllers
- ### Features and Benefits
- 8 software-programmable output ranges: 0 V to 5 V, 0 V to 10V, 0V to 16 V, 0 V to 20 V, ±3 V, ±5V, ±10 V, and −2.5 V to +7.5 V; 5% overrange
- Low drift 2.5 V reference: ±2 ppm/°C typical
- Total unadjusted error (TUE): 0.1% FSR maximum
- 16-bit resolution: ±2 LSB maximum INL
- Guaranteed monotonicity (DNL): ±1 LSB maximum
- See data sheet for additional features
- AD5761R-EP supports defense and aerospace applications (AQEC standard)
- Download AD5761R-EP data sheet (pdf)
- Military temperature range: −55°C to +125°C
- Controlled manufacturing baseline
- 1 assembly/test site
- 1 fabrication site
- Enhanced product change notification
- Qualification data available on request
- V62/17605 DSCC Drawing Number
AD5761RBRUZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | TSSOP-16 |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 67.1 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 67.1 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 4.75V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
