Description

The AD590JH is a 2-terminal IC Temperature Transducer that produces an output current proportional to absolute temperature. Laser trimming of the chip"s thin-film resistors is used to calibrate the device to 298.2µA output at 298.2K (25°C). The transducer should be used in any temperature-sensing application below 150°C in which conventional electrical temperature sensors are currently employed. The inherent low cost of a monolithic integrated circuit combined with the elimination of support circuitry makes the AD590 an attractive alternative for many temperature measurement situations. In addition to temperature measurement, applications include temperature compensation or correction of discrete components, biasing proportional to absolute temperature, flow rate measurement, level detection of fluids and anemometry. It is particularly useful in remote sensing applications. The device is insensitive to voltage drops over long lines due to its high impedance current output.
Linear current output
Probe-compatible ceramic sensor package
2-terminal device- voltage in/current out
Sensor isolation
ESD sensitive device, take proper precaution while handling the device.

Show

AD590JH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin

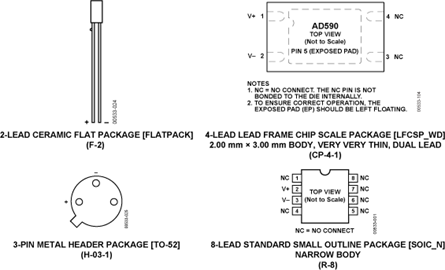

Case/Package	TO-52-3
Supply Voltage (DC)	4.00V (min)
Output Current	298 µA
Number of Positions	3 Position
Forward Voltage	44.0 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±5 ℃
Supply Voltage	4V ~ 30V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	4 V
	Show
Size-Length	5.84 mm
Size-Width	5.84 mm
Size-Height	3.81 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
