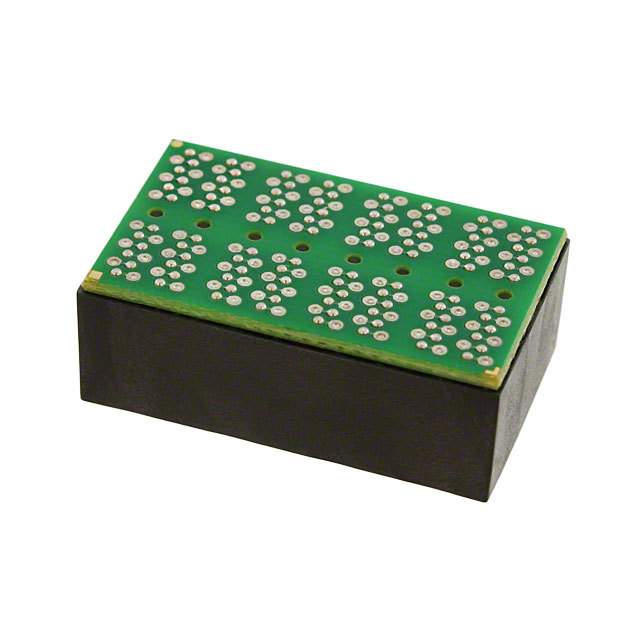

Image is for your reference only,please check specifications for details
- HX5400NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC7096315
-
Category:Transformer
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Telecom Transformer 1:1 0.65Ω Prim. DCR 0.65Ω Sec. DCR 24Term. SMD
-
Stock Locations:
-
Availability:699 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 21.36
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- HX5400NL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. HX5400NL is described as XFRMR MODL 4PORT POE GIGABIT. Perfect Parts is a supplier of Transformers and other Miscellaneous.
HX5400NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SMD |
| Inductance | 350 μH |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Minimum CMRR Range | -50dB @2MHz |
| Show | |
| Size-Length | 28.45 mm |
| Size-Width | 17.27 mm |
| Size-Height | 11.18 mm |
| Weight | 9.97 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
