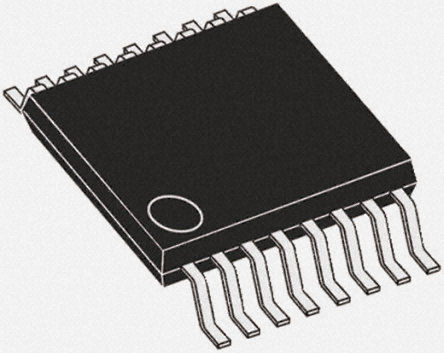

AD5933YRSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC136147
Category:
Analog to Digital, ADC IC
Package:
SSOP-16
Datasheet:
Datasheet 3D Model
Description:
Special Function IC, Impedance Converter 12Bit, 1MSPS, Network Analyzer, 2.7V to 5.5V, SSOP-16
Stock Locations:
Availability:
1,851 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.87

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD5933YRSZ is a 1 MSPS 12-bit Impedance Converter Network Analyser that combines an on-board frequency generator with a 12-bit, 1 MSPS, analogue-to-digital converter (ADC). The frequency generator allows an external complex impedance to be excited with a known frequency. The response signal from the impedance is sampled by the on-board ADC and a discrete Fourier transform (DFT) is processed by an on-board DSP engine. The DFT algorithm returns a real (R) and imaginary (I) data-word at each output frequency. Once calibrated, the magnitude of the impedance and relative phase of the impedance at each frequency point along the sweep is easily calculated. This is done off chip using the real and imaginary register contents, which can be read from the serial I²C interface.
Programmable output peak-to-peak excitation voltage
Programmable frequency sweep capability
Frequency resolution of 27bits (<0.1Hz)
Impedance measurement range from 1kR to 10MR
Internal temperature sensor
Phase measurement capability
0.5% System accuracy
ESD sensitive device, take proper precaution while handling the device.

Show

AD5933YRSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SSOP-16
Supply Voltage (DC)	2.70V (min)
Number of Outputs	1 Output
Supply Current	15.0 mA
Number of Channels	1 Channel
Number of Positions	16 Position
Number of Bits	12 Bit
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	6.2 mm
Size-Width	5.3 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
