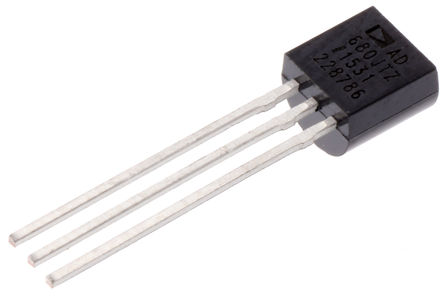

AD680JTZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC256109
Category:
Voltage Reference
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
Analog Devices AD680JTZ, Fixed Series Voltage Reference 2.5V, 0.4% 36V max., 3Pin TO-92
Stock Locations:
Availability:
261 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.54

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD680 series low-power band gap Voltage Reference provides a fixed 2.5V output from inputs between 4.5V and 36V. The architecture of the AD680 enables the reference to be operated at a very low quiescent current while still realizing excellent DC characteristics and noise performance. Trimming of the high stability thin-film resistors is performed for initial accuracy and temperature coefficient, resulting in low errors over temperature. The precision DC characteristics of the AD680 make it ideal for use as a reference for DACs that require an external precision reference. The device is also ideal for ADCs and, in general, can offer better performance than the standard on-chip references. Based upon its low quiescent current, which rivals that of many incomplete references, the AD680 is recommended for low power applications, such as hand-held and battery-operated equipment.
250µA Maximum low quiescent current
2.5V ±5mV Maximum laser trimmed to high accuracy (AN, AR grades)
20ppm/°C Maximum trimmed temperature coefficient (AN, AR grades)
250nV/√Hz Wideband low noise at 8µVp-p from 0.1 to 10Hz

Show

AD680JTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Current Rating	250 µA
Capacitance Tolerance	±0.4 %
Input Voltage (DC)	4.50V ~ 36.0V
Output Voltage	2.5 V
Output Current	10 mA
Supply Current	280 µA
Number of Channels	1 Channel
Number of Positions	3 Position
Input Voltage (Max)	36 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	2.51 V
Output Voltage (Min)	2.5 V
Output Current (Max)	10 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Junction Temperature (Max)	70 ℃
Accuracy	±0.4 %
Voltage Rating	2.5 V
Input Voltage	4.5V ~ 36V
	Show
Size-Length	5.21 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	0℃ ~ 70℃
Temperature Coefficient	±30 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
