Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

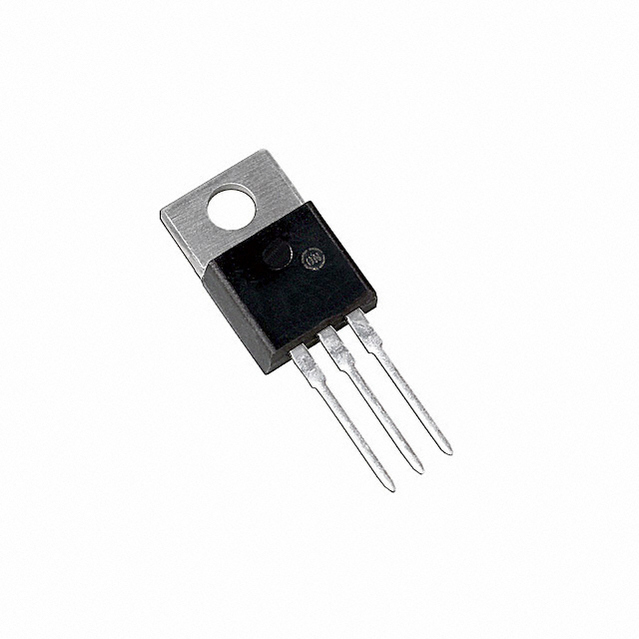

Case/Package | TO-220-3 |
Voltage Rating (DC) | 350 V |
Current Rating | 4.00 A |
Polarity | NPN |
Breakdown Voltage (Collector to Emitter) | 350 V |
Continuous Collector Current | 4A |
hFE Min | 10 @2A, 5V |
Input Power (Max) | 2 W |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -65 ℃ |
Power Dissipation (Max) | 2000 mW |
Show | |
Material | Silicon |
Operating Temperature | -65℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Unknown |
Packaging | Tube |
RoHS | Non-Compliant |
Lead-Free Status | Contains Lead |
ECCN Code | EAR99 |
