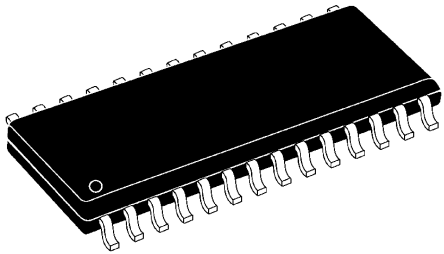

Image is for your reference only,please check specifications for details
- AD73360ARZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC319440
-
Category:Active Chip
-
Package:SOIC-28
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES AD73360ARZ. Analogue to Digital Converter, 16Bit, 2.7V, 5.5V, SOIC
-
Stock Locations:
-
Availability:286 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 10.34
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD73360 is a six-channel analog input front-end processor for general purpose applications including industrial power metering or multi-channel analog inputs. It features six 16-bit A/D conversion channels each of which provide 77 dB signal-to-noise ratio over a voiceband signal bandwidth. It also features a programmable input gain amplifier (PGA) with gain settings in eight stages from 0 dB to 38 dB. The AD73360 is particularly suitable for industrial power metering as each channel samples synchronously ensuring that there is very little time (phase) delay between the conversions.
- The AD73360 also features low group delay conversions on all channels. An on-chip reference voltage is included to allow single supply operation. This reference is programmable to accommodate either 3V or 5V operation. The sampling rate of the device is programmable with four separate settings offering 64, 32, 16 and 8 kHz sampling rates (from a master clock of 16.384 MHz). A serial port (SPORT) allows easy interfacing of single or cas-caded devices to industry standard DSP engines. The SPORT transfer rate is programmable to allow interfacing to both fast and slow DSP engines.
- The AD73360 is available in 28-pin SOIC and 44-pin TQFP packages.
- ### Features and Benefits
- Six 16-Bit A/D Converters
- Programmable Input Sample Rate
- 77 dB ADC SNR
- 64 kS/s Maximum Sample Rate
- –83 dB Crosstalk
- Low Group Delay (25 µs typ per ADC Channel)
- Programmable Input Gain
- Flexible Serial Port Allows Multiple Devices To Be Connected in Cascade
- Single (+2.7 V to +5.5 V) Supply Operation
- 80 mW Max Power Consumption at 2.7 V
- On-Chip Reference
- 28-Pin SOIC and 44-Pin TQFP Packages
AD73360ARZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SOIC-28 |
| Supply Voltage (DC) | 2.70V (min) |
| Power Rating | 80 mW |
| Number of Circuits | 6 Circuit |
| Number of Channels | 6 Channel |
| Number of Positions | 28 Position |
| Number of Bits | 16 Bit |
| Power Dissipation | 80.0 mW |
| Sample Rate | 64 KSPS |
| Resolution (Bits) | 16.0 Bit |
| Input Impedance | 25.0 kΩ |
| Number of ADCs | 6 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 80 mW |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 18.1 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| Mil-Spec | No |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
