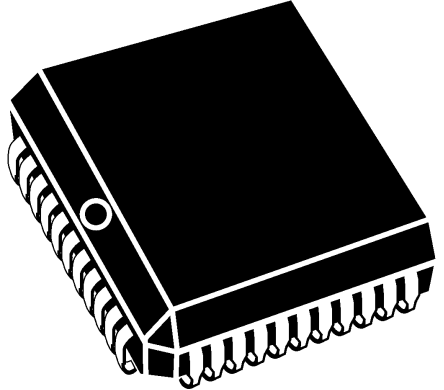

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD75019JPZ is a 16 x 16 Crosspoint Switch Array that contains 256 analogue switches. Any of the X or Y pins may serve as an input or output. Any or all of the X terminals may be programmed to connect to any or all of the Y terminals. The switches can accommodate signals with amplitudes up to the supply rails and have a typical on resistance of 150R. Data is loaded serially via the SIN input and clocked into an onboard 256-bit shift register via SCLK. When all the switch settings have been programmed, data is transferred into a set of 256 latches via PCLK. The serial shift register is dynamic, so there is a minimum clock rate of 20kHz. The maximum clock rate of 5MHz allows loading times as short as 52µs. The switch control latches are static and will hold their data as long as power is applied. To extend the number of switches in the array, you may cascade multiple AD75019s. The SOUT output is the end of the shift register and may be connected to the SIN input of the next AD75019.
Low on-resistance
TTL/CMOS/microprocessor-compatible control lines
Serial input simplifies interface
Serial output allows cascading for more channels
Low power consumption
ESD sensitive device, take proper precaution while handling the device.

Show

AD75019JPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	44 Pin
Case/Package	PLCC-44
Supply Voltage (DC)	4.50V (min)
Supply Current	800 µA
Number of Channels	1 Channel
Number of Positions	44 Position
Drain to Source Resistance (on) (Rds)	150 Ω
Bandwidth	20 Mhz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
3dB Bandwidth	20 MHz
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	16.66 mm
Size-Width	16.66 mm
Size-Height	3.68 mm
Operating Temperature	-25℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
