AD7626BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC278904
Category:
Analog to Digital, ADC IC
Package:
LFCSP-32
Datasheet:
Datasheet 3D Model
Description:
Analog to Digital Converter, 16Bit, 10MSPS, Single, 2.37V, 5.25V, LFCSP
Stock Locations:
Availability:
207 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 27.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

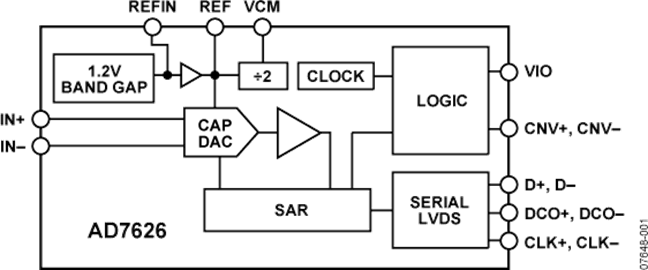

The AD7626BCPZ is a PulSAR differential Analog-to-digital Converter (ADC) with charge redistribution successive approximation register based architecture. SAR architecture allows unmatched performance both in noise and in linearity. The converter contains a high speed 16-bit sampling ADC, an internal conversion clock and an internal buffered reference. On the CNV edge, it samples the voltage difference between the IN+ and IN- pins. The voltages on these pins swing in opposite phase between 0V and REF. The 4.096V reference voltage REF can be generated internally or applied externally. All converted results are available on a single low voltage differential signalling self clocked or echoed clock serial interface, reducing external hardware connections.
16-bit no missing codes
No latency/pipeline delay
Serial LVDS interface
Self clocked mode
Echoed clock mode
LVDS for conversion control

Show

AD7626BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Supply Voltage (DC)	2.37V (min)
Supply Current	23.5 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	32 Position
Number of Bits	16 Bit
Power Dissipation	150 mW
Sample Rate	10 Msps
Power Consumption	150 mW
Resolution (Bits)	16.0 Bit
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	170 mW
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.37 V
	Show
Size-Width	5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2017/07/07
HK STC License	NLR
