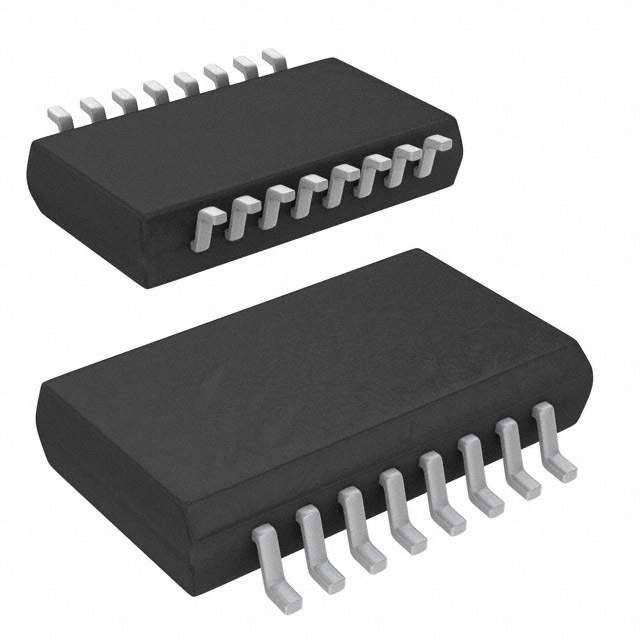

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 16 Bit Analog to Digital Converter 2 Input 1 Sigma-Delta 16-SOIC
AD7705BR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Number of Bits | 16 Bit |
| Power Dissipation | 1 mW |
| Resolution (Bits) | 16.0 Bit |
| Input Capacitance | 10.0 pF |
| Input Impedance | 9.00 GΩ |
| Number of ADCs | 1 ADC |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1 mW |
| Show | |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| HK STC License | NLR |
