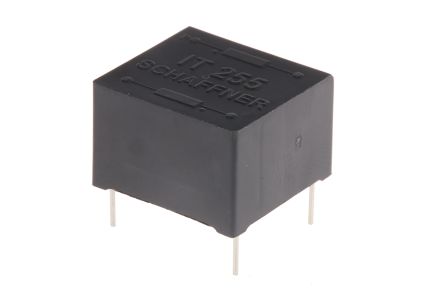

Image is for your reference only,please check specifications for details
- IT255 - Schaffner
-
Manufacturer:Schaffner
-
ManyChip's Part#:MC2451746
-
Category:Transformers
-
Datasheet:Datasheet 3D Model
-
Description:Пульсный трансформатор 1:1, с первичным сопротивлением 0.8 Ом и вторичным сопротивлением 8 пфн. Тип конструкции – 4Терминал. Пины для подключения через отверстие.
-
Stock Locations:
-
Availability:628 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.36
Updated at 12/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Пульсные трансформаторы серии IT предназначены для обеспечения гальванического изоляции в системах управления электродвигателями, сочетающих трансформаторы. Серия IT позволяет избегать значительных задержек в работе и предусматривает возможность регулировки напряжения. Трансформаторы серии IT доступны с одним или двумя вторичными обмотками для использования в различных системах управления электродвигателями. Выбор продукции серии IT позволяет получить стандартный трансформатор управления электродвигателем с быстрой поставкой. Широкий выбор по соотношению обмоток, току зажигания и напряжения позволяет подобрать подходящий стандартный продукт.
IT255 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Frequency | 40 kHz |
| Inductance | 2.2 mH |
| Isolation Voltage | 4 kV |
| DC Resistance (DCR) | 0.8 Ω |
| Rise Time (Max) | 1100 ns |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 17.6 mm |
| Size-Width | 16.7 mm |
| Size-Height | 11.3 mm |
| Weight | 5.7 g |
| Operating Temperature | -25℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
