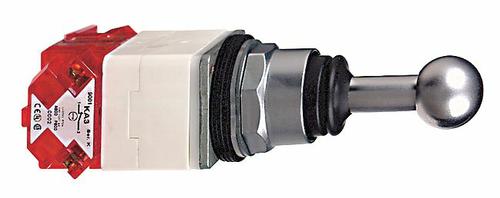

Image is for your reference only,please check specifications for details

9001K35H2 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC138912815
Category:
Switch Accessory
Package:
125
Datasheet:
Datasheet 3D Model
Description:
Joystick, Spring Return (To Center) 5POS., 2NO-2NC, 30mm, 10A, 600V, NEMA 4/13
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The joystick operator is ideal for applications where only one circuit is to be energized at one time. The three position joy stick closes one circuit each in Up-Down or Right-Left position with all circuits open in center position. The five position operator closes one circuit each in Up, Down, Left and Right positions with all circuits open in center position.
Momentary contact operators are spring return to the center position. Maintained operators remain in each position and must be reset manually. Operators with latch cannot be operated until the latch button in center of handle is pressed.

Show

9001K35H2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Case/Package	125
Current Rating	10 A
Number of Positions	5 Position
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	600 VAC
	Show
Contact Material	Silver Alloy
Operating Temperature	-25℃ ~ 75℃
Product Lifecycle Status	Not Recommended for New Design
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
