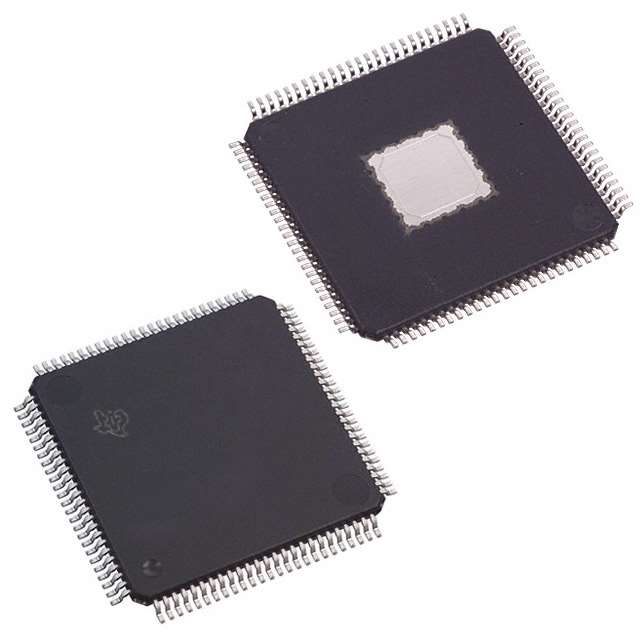

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Need to convert your analog signals to digital signals? This TVP7002PZPR ADC from Texas Instruments will get the job done. Its maximum power dissipation is 1403 mW. It has a single-ended input signal. This device"s digital interface is parallel. This ADC has a resolution of 10bit. This ADC has an input voltage of 2 V. This ADC has a minimum operating temperature of 0 °C and a maximum of 70 °C.

Show

TVP7002PZPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	TQFP-100
Supply Current	279 mA
Number of Circuits	3 Circuit
Number of Channels	3 Channel
Number of Bits	8 Bit
Power Dissipation	1112 mW
Sample Rate	165000 KSPS
Number of ADCs	3 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1403 mW
Number of Input Channels	10 Channel
Supply Voltage (Max)	2V, 3.6V
Supply Voltage (Min)	1.8V, 3V
Input Voltage	2 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
