Description
- General Description
- • Latest Trench Power AlphaMOS (αMOS LV) technology
- • Very Low RDS(on) at 4.5VGS
- • Low Gate Charge
- • High Current Capability
- • RoHS and Halogen-Free Compliant
- Product Summary
- VDS 30V
- ID(at VGS=10V) 85A
- RDS(ON)(at VGS=10V) < 2.1mΩ
- RDS(ON)(at VGS= 4.5V) < 3.2mΩ
- 100% UIS Tested
- 100% Rg Tested
- Application
- • DC/DC Converters in Computing, Servers, and POL
- • Isolated DC/DC Converters in Telecom and Industrial

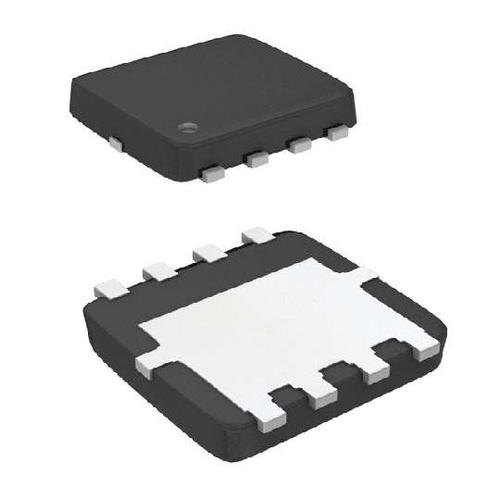

AON6504 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DFN-8 |
| Polarity | N-CH |
| Power Dissipation | 83 W |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 85A |
| Input Capacitance (Ciss) | 2719pF @15V(Vds) |
| Input Power (Max) | 7.3 W |
| Power Dissipation (Max) | 7.3W (Ta), 83W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
